15 square nail and spike references. Nominal dimensions and approximate weights.

Sort by

Square nail and spike references and dimensions
						Request this reference
Nail No. 2	F 2x15	1.83	25	4.60	0.64	Enquire
Nail No. 3	F 3x15	1.83	30	4.60	0.77	Enquire
Special nail	F 4x15	1.83	40	4.60	0.95	Enquire
Nail No. 4	F 4x14	2.11	40	5.30	1.37	Enquire
Nail No. 5	F 5x13	2.25	45	5.90	1.99	Enquire
Nail No. 6	F 6x13	2.41	50	5.90	2.26	Enquire
Nail No. 7 Setia 12	S 12	2.77	60	6.20	3.37	Enquire
Half Galeota nail 11	½ G 11	3.05	65	6.90	4.43	Enquire
Galeota nail 10	G 10	3.40	75	7.70	6.46	Enquire
Half Telhar nail 9	½ T 9	3.76	90	7.60	9.24	Enquire
Telhar nail 8	T 8	4.19	100	8.40	12.61	Enquire
Spike No. 5	Cavilha 5	5.16	125	10.30	23.56	Enquire
Spike No. 6	Cavilha 6	5.59	150	11.20	33.14	Enquire
Spike No. 7	Cavilha 7	6.04	175	12.10	43.90	Enquire
Spike No. 8	Cavilha 8	6.58	200	13.20	58.97	Enquire

Nail No. 2F 2x15L1 · length25 mmd1 · body width1.83 mmMore details

d2 · head: 4.60 mm
Approx. weight (kg/1,000): 0.64 kg

Nail No. 3F 3x15L1 · length30 mmd1 · body width1.83 mmMore details

d2 · head: 4.60 mm
Approx. weight (kg/1,000): 0.77 kg

Special nailF 4x15L1 · length40 mmd1 · body width1.83 mmMore details

d2 · head: 4.60 mm
Approx. weight (kg/1,000): 0.95 kg

Nail No. 4F 4x14L1 · length40 mmd1 · body width2.11 mmMore details

d2 · head: 5.30 mm
Approx. weight (kg/1,000): 1.37 kg

Nail No. 5F 5x13L1 · length45 mmd1 · body width2.25 mmMore details

d2 · head: 5.90 mm
Approx. weight (kg/1,000): 1.99 kg

Nail No. 6F 6x13L1 · length50 mmd1 · body width2.41 mmMore details

d2 · head: 5.90 mm
Approx. weight (kg/1,000): 2.26 kg

Nail No. 7 Setia 12S 12L1 · length60 mmd1 · body width2.77 mmMore details

d2 · head: 6.20 mm
Approx. weight (kg/1,000): 3.37 kg

Half Galeota nail 11½ G 11L1 · length65 mmd1 · body width3.05 mmMore details

d2 · head: 6.90 mm
Approx. weight (kg/1,000): 4.43 kg

Galeota nail 10G 10L1 · length75 mmd1 · body width3.40 mmMore details

d2 · head: 7.70 mm
Approx. weight (kg/1,000): 6.46 kg

Half Telhar nail 9½ T 9L1 · length90 mmd1 · body width3.76 mmMore details

d2 · head: 7.60 mm
Approx. weight (kg/1,000): 9.24 kg

Telhar nail 8T 8L1 · length100 mmd1 · body width4.19 mmMore details

d2 · head: 8.40 mm
Approx. weight (kg/1,000): 12.61 kg

Spike No. 5Cavilha 5L1 · length125 mmd1 · body width5.16 mmMore details

d2 · head: 10.30 mm
Approx. weight (kg/1,000): 23.56 kg

Spike No. 6Cavilha 6L1 · length150 mmd1 · body width5.59 mmMore details

d2 · head: 11.20 mm
Approx. weight (kg/1,000): 33.14 kg

Spike No. 7Cavilha 7L1 · length175 mmd1 · body width6.04 mmMore details

d2 · head: 12.10 mm
Approx. weight (kg/1,000): 43.90 kg

Spike No. 8Cavilha 8L1 · length200 mmd1 · body width6.58 mmMore details

d2 · head: 13.20 mm
Approx. weight (kg/1,000): 58.97 kg

How to read the dimensions

L1: Total length
d1: Square body width
d2: Head diameter

Nominal dimensions in millimetres. Approximate weight per 1,000 units. Supply is subject to confirmation.

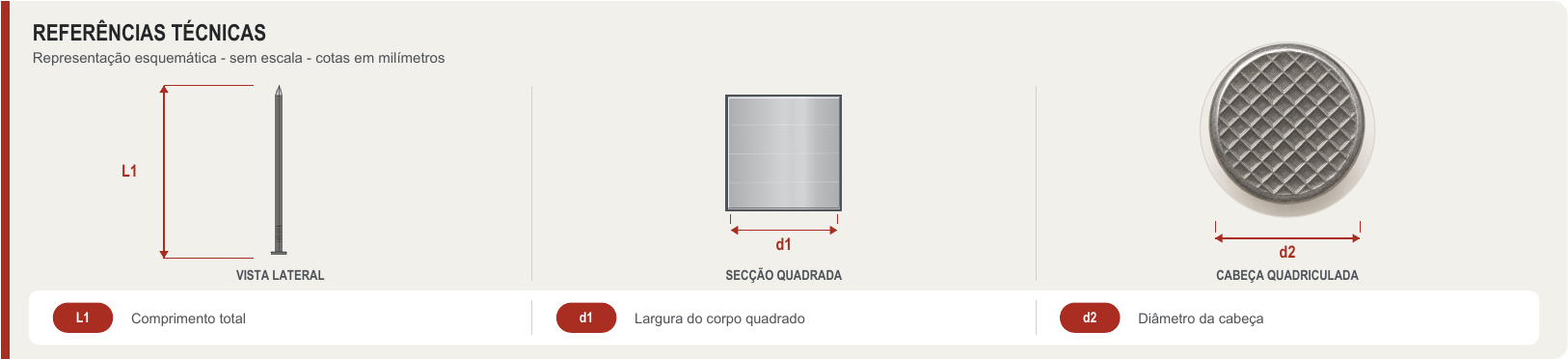

Official technical drawing

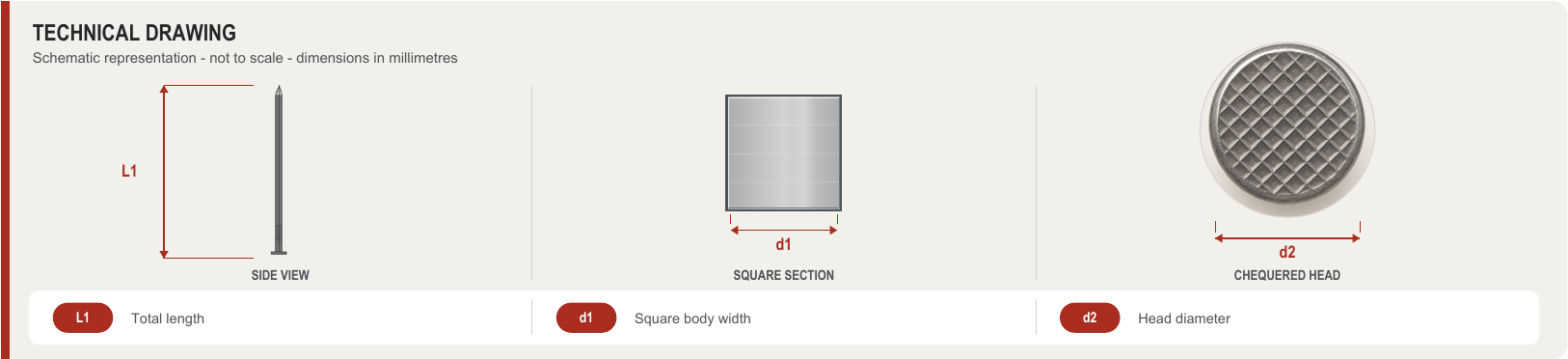

Avelã technical sheet: side view, square section and head with dimensions L1, d1 and d2 — L1: total length · d1: square body width · d2: head diameter. Drawing not to scale.
